ipl spectra

420nm, 530nm, 590nm, 640nm, 690nm

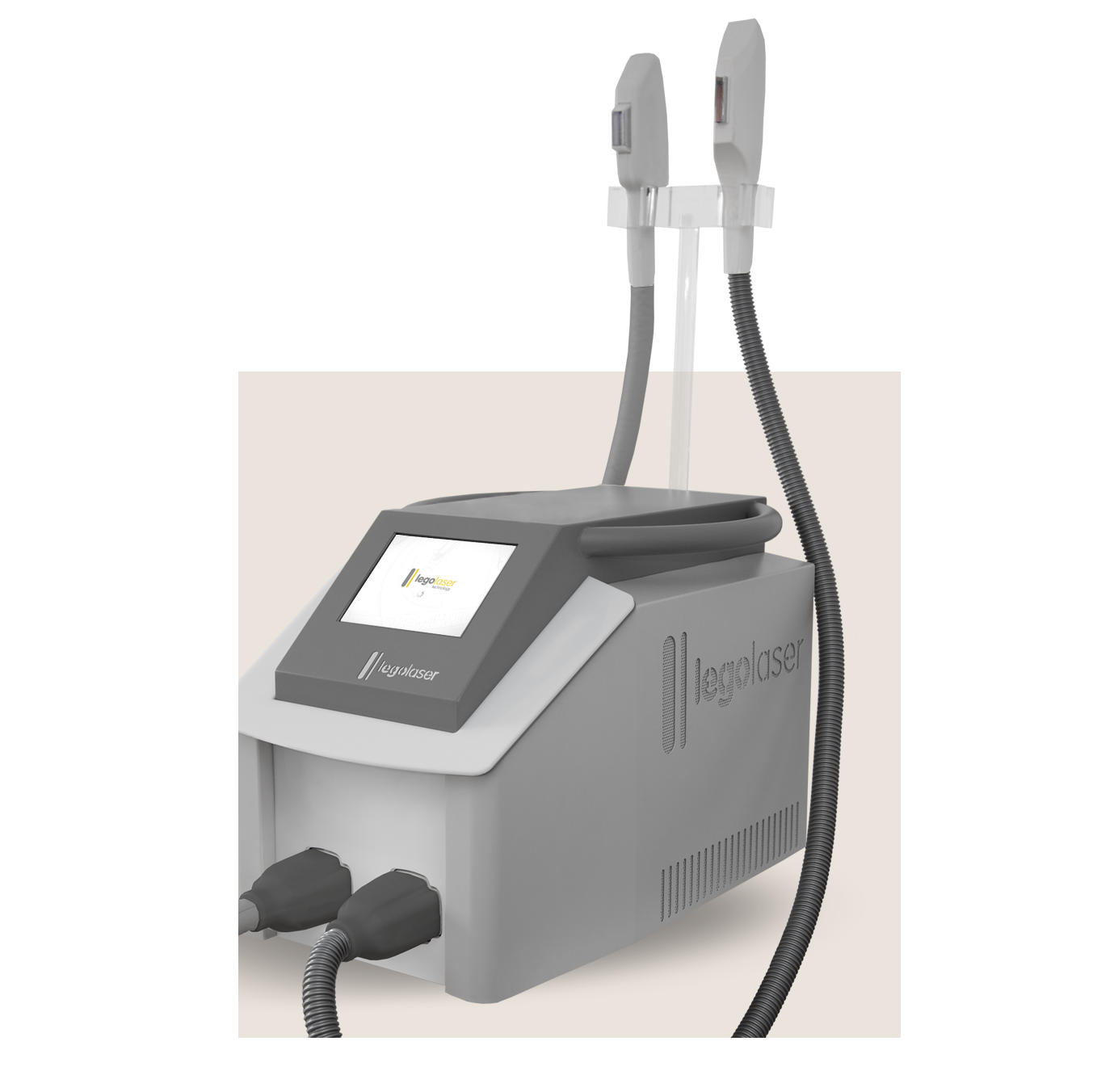

Intense pulse light with shr technology and e-light system


opt with high frequency mode

The E-Light system combines three technologies; Bipolar Radio Frequency + IPL + skin cooling.  The RF energy when combined with IPL energy results in “E-light”, thereby, achieving the desired temperature in the treatment area in order to destroy the desired deep target areas. When applied together, the IPL light is absorbed by the chromophores skin surface (melanin, hemoglobin) while the RF is responsible for penetrating inner layers.


Acne (420 nm)
Propionibacterium acne bacteria is sensitive to light emission.

Photo rejuvenation (530nm)
IPL + RF improves all visible imperfections of the skin altered by the sun or by ageing like wrinkles, laxity, enlarged pores, or roughness among others.

Vascular lesions (590nm)
Pulse light attenuates the skin spots and small facial vascular lesions (spider veins) by vascular necrosis.

Pigmented lesions (640nm)
IPL is effective in epidermal pigmented lesions from 0.1 to 3 mm depth as solar lentigo, poikiloderma, freckling or cafe au lait spots among others.

Hair removal (690nm)
The light absorbed by the melanin in the hair is converted into heat, which destroys the dermal papilla of the hair follicle.


Technical sheet

Light type – IPL with SHR + E-light + OPT
OPT System – Optimum Pulse Technology
SHR System – Super Hair Removal
SHR Lamp – 1.000.000 shots
E-Light System – Radio Frequency + Int. Pulse light
E-Light Lamp – 200.000 shots
Wavelength –  420, 530, 590, 640, 690 nm
Equipment power – 3.000 w
Screen size – LCD 8.6″ Color
Software -English and Others
Spot – Sapphire
Spot size / SHR – 10 X 50 mm
Spot size / E-light – 12 X 30 mm
Work temperature – Between – 7° C and 0° C
IPL Energy – 1 J/cm²- 50 J/cm²
Nº Subpulses – 6 sub pulses (E-light Mode)
Shot frequency –10 Hz (SHR Mode)
Equipment size/Weight – 32 cm x 52 cm x 58 cm/32 kg
Export pack size/ Weight60 cm x 65 cm x 70 cm/40 kg


Photographic analysis

4 sessions

4 sessions
