eride Smart Dual

Handle 1: 755nm + 808nm + 1064nm / Handle 2: 808nm

DIODE LASER
ERIDE SMART DUAL

Highest efficiency for all skin types during the whole year

This new laser system has been created for the most demanding clients who are looking for the optimal hair removal performance for each skin type regardless of the season.

Technical sheet

Laser type – Diode
Number of handles – 2
Wavelength handle 1 – 755 nm + 808 nm + 1064 nm
Wavelength handle 2 – 808 nm
Laser source power – 1000 w
Equipment power – 3000 w
Screen size – LCD 8.6″ Color
Software – English and Others
Software memory – 72 parameters
Protection System – Auto-Reset
Spot size/Handle 1 – 13 X 24 mm
Spot size/Handle 2 – 12 x 12 mm
Durability/Handle 1 – 12-15 million shoots
Durability/Handle 2 – 13-16 million shoots
Pulse width – 10 ms – 500 ms
Diode Energy – 1 J/cm²- 100 J/cm²
Shot frequency – 1 Hz – 10 Hz
Cooling system – Micro channels + Water + Air
Noise Level – 50 db
Work temperature – Between – 5° C and 0° C
Power voltage – 220 V / 110 V
Equipment size/ Weight – 37 cm x 63 cm x 45 cm / 38kg
Export pack size/ Weight – 60 cm x 65 cm x 70 cm / 48kg

Applications

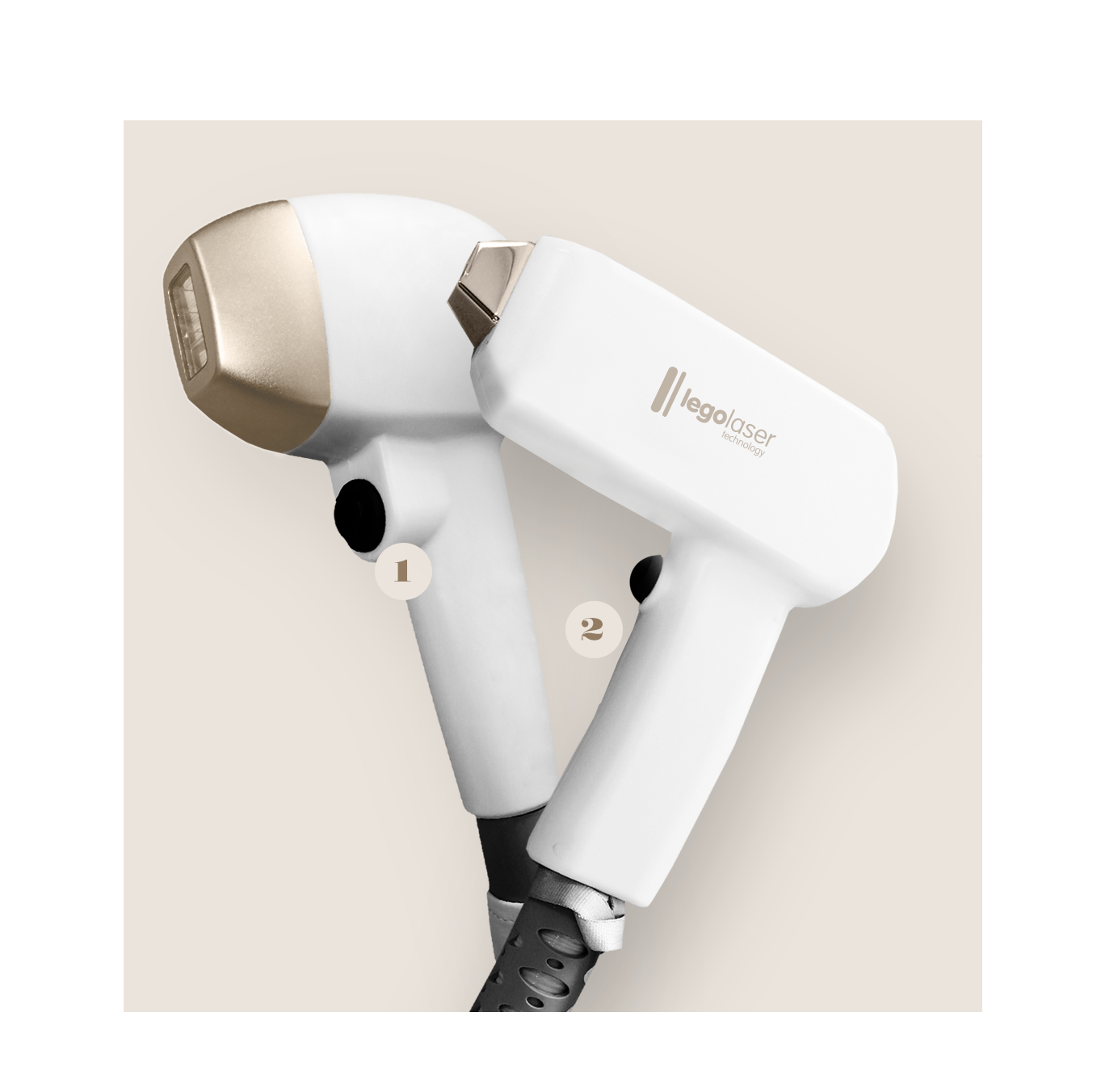

The new Eride Smart Dual offers two different applications according to the client needs:

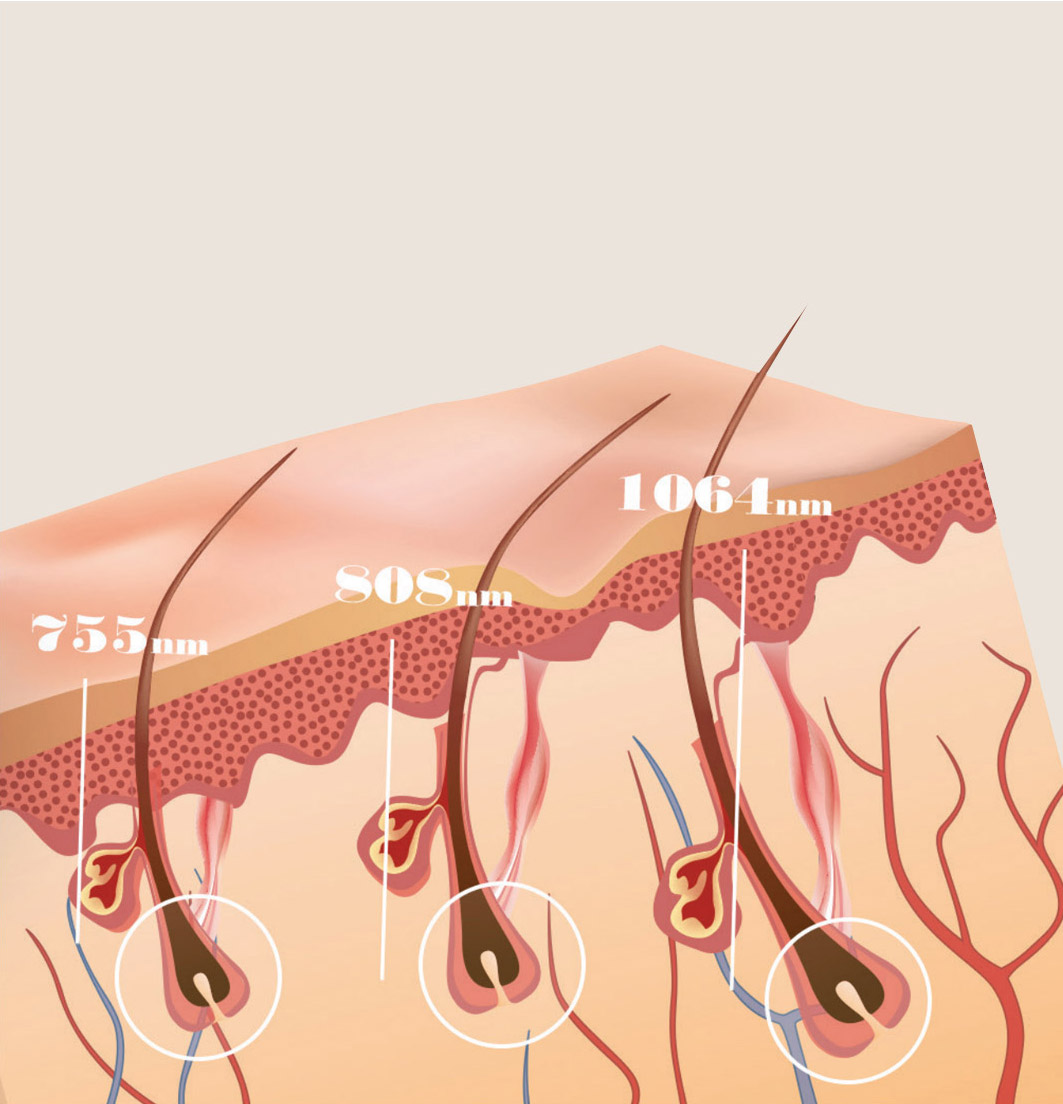

1. First handle: the new three wavelengths integrated in one handle (755 nm + 808 nm + 1064nm), suitable for all skin types, and hair colours during the whole year. Especially effective for blonde and light hair (755nm), and for dark, and high skin type (1064nm).

2. Second handle: the most effective energy delivery thanks to the 808 nm wavelength, which targets straight elimination of the hair follicle without damaging the surrounding skin tissue.



Suitable for all skin types

I

Application of second handle (808nm) is recommended.

II

Application of second handle (808nm) is recommended.

III

Combination of both handles is recommended

IV

Combination of both handles is recommended

V

Application of first handle (755 + 808 +1064) is recommended.

VI

Application of first handle (755 + 808 +1064) is recommended.
