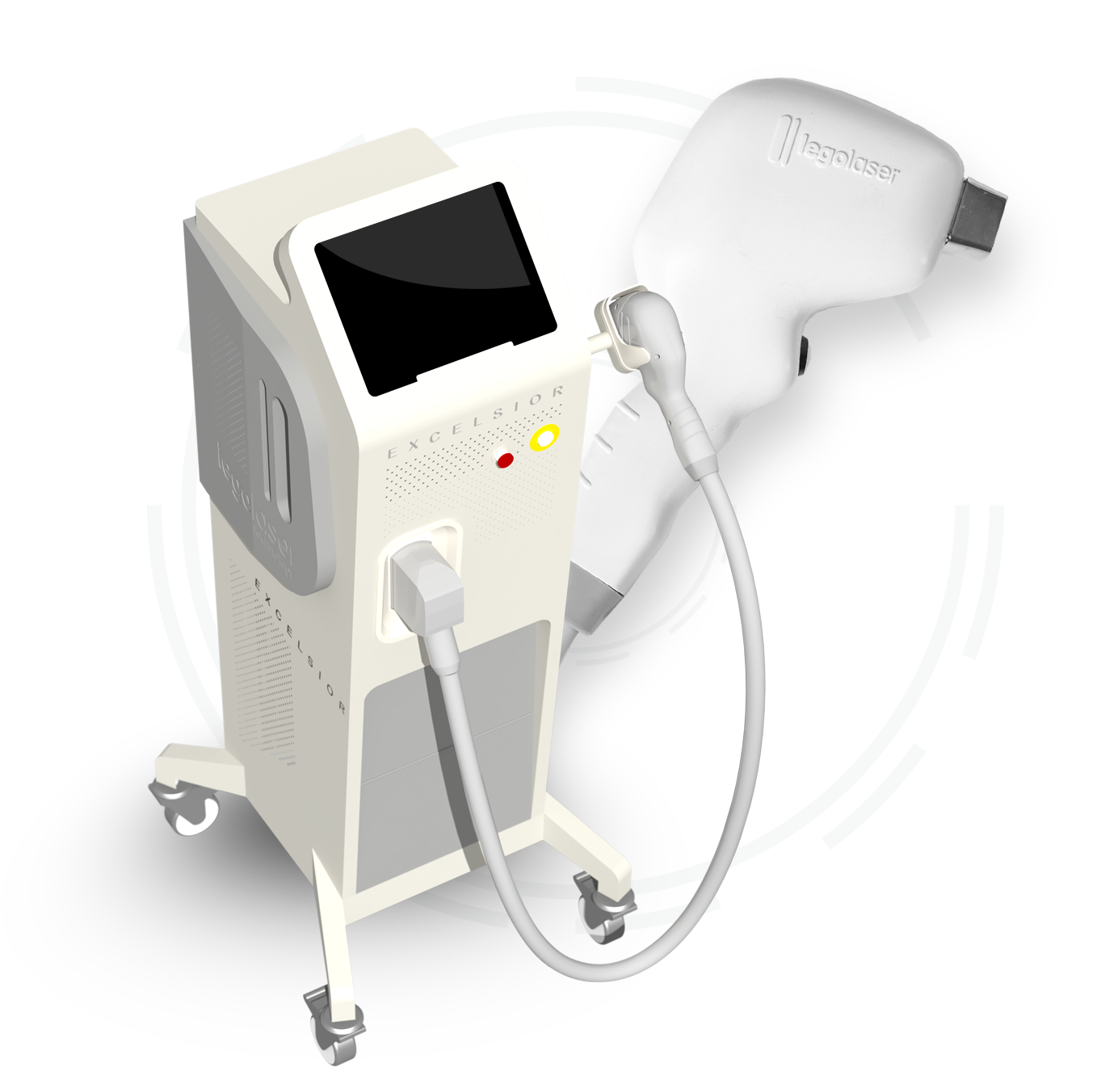

Excelsior

OPT LED technology 3.0

Developed with LED technology

The new Excelsior is the most revolutionary and innovative technology to date for permanent hair removal.

Offering the highest efficiency in hair removal systems (high light energy through lowest energy consumption) based on high power OPT LED technology.

How LED technology works?

OPT LED technology for hair removal is based on LED chips (made in USA), which emits high-power LED light source through an optimized wavelength spectrum of 755 nm – 880 nm.

LED light is highly effective targeting the melanin of the hair follicle for a permanent hair removal. Thanks to the broad spectrum of light, it can be applied to all photo types, and all types of hair even in residuals.





Technical advantages over other technologies

DURABILITY

The new Excelsior is capable to perform out up to 100 million shots, maintaining its useful life for a minimum period of 5 years.

OPTIMISED WAVELENGTH

The LED technology incorporated in the Excelsior can emit near infrared light wavelength spectrum of 755 – 880 nm, which results are a highly effective in permanent hair removal.

EASY MAINTENNANCE

The new Excelsior does not need any consumables, as well as its optimal operation without downtime between patient and patient provides an easy and low-cost maintenance service.

MINIMUM DIVERGENCE OF LED LIGHT

Due to the reduce angle of divergence of LED light (less than 15%), we get a better penetration of the light energy in the skin than other systems, thus, access to deeper follicles hairs.

EXCELLENT COOLING SYSTEM

Thanks to the powerful ICE–TEC cooling system, an operating temperature between -5 and -15 degrees is performed during treatments, which guarantees a regular comfort feeling such as the highest skin protection.
The spot has been especially manufactured in high-conduction material (Golden Copper) to reach an optimal cooling system by means of integral temperature control.

BIG SPOT SIZE

The new Excelsior fits a large spot 17 x 22mm (3.74 cm²), thanks to which it delivers a regular and clear energy that reduces treatment times.

Main technical characteristics

HIGH POWER FOR AN EXCELLENT CLINIC RESULT

Energy power of 1,200w obtained by 12 LED chips of 100w each.

Due to the small size of the chips, they can be compacted separately in an optimized way inside the handle to achieve a higher power density.

The energy density of the new OPT LED light is up to 60-70% higher than conventional diode lasers.



HIGH SHOOTING FREQUENCY

Thanks to Excelsior frequency (1-10 Hz) it makes the device one of the fastest light systems used in hair removal.

ERGONOMIC AND HIGHLY RESISTANT HANDLE

The handle of the new Excelsior is designed to offer the greatest ergonomic to the user, allowing to reach less accessible body areas by means of causing greater comfort during usage.

The material used in the new handle production is highly resistance, which reduces considerably the risk of damage in case of fall and / or collision.

SMART SOFTWARE SYSTEM

The software of the new Excelsior allows us to work in four treatment modes: SHR, static, continuous, and expert.

In addition, the software system holds an energy calibration function, which allows an accurate and effective emission of energy, and WIFI connection, which allows remote control access to the equipment aiming to remote check of the parameters.

Technical sheet

Light source – OPT LED chips
Wavelength spectrum – 755 nm ~ 880 nm
LED energy power – 1.200 w
Screen size – LCD 9.8″ Color
Software language – English and others
Working mode – SHR, static, continuous, and expert
Safety system – Automatic Calibration
Spot size –17 x 22 mm
Handle durability – 80-100 million shots
Pulse width – 9 ms – 780 ms
Energy Fluence- 1 J/cm²- 100 J/cm²
Frequency – 1 Hz – 10 Hz
Cooling system – ICE TEC + Water cooling
Noise level – 60 db
Cooling temperature – 5°C -15°C
Electric Voltage – 220 V / 110 V

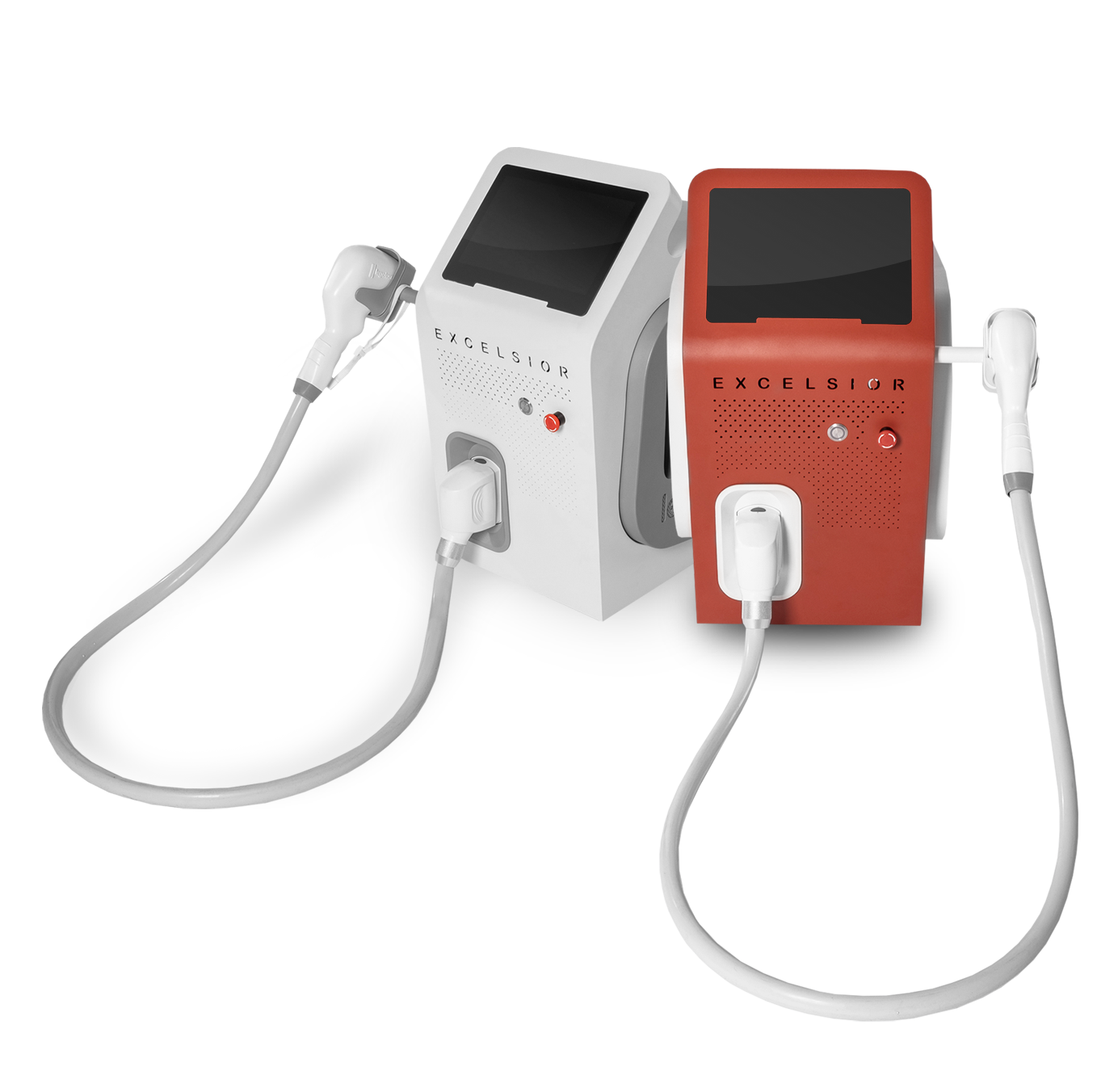

EXCELSIOR
Size / weight – 30 cm x 60 cm x 40 cm / 28 kg
Export size / weight – 44 cm x 57 cm x 70 cm / 38 kg

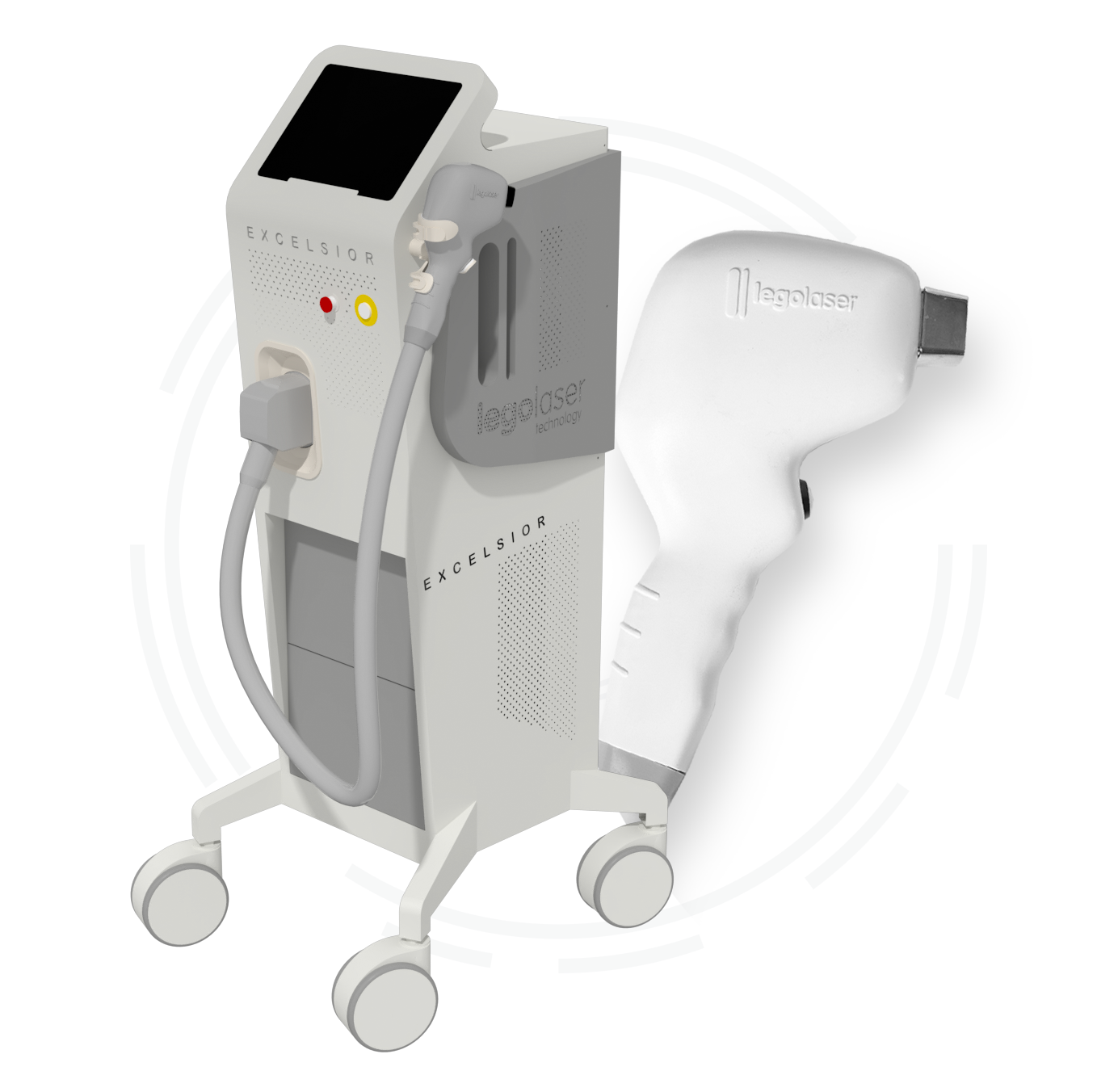

EXCELSIOR+
Size / weight –  45 cm x 120 cm x 52 cm / 38 Kg
Export size / weight – 60 cm x 140 cm x 67cm / 48 Kg
