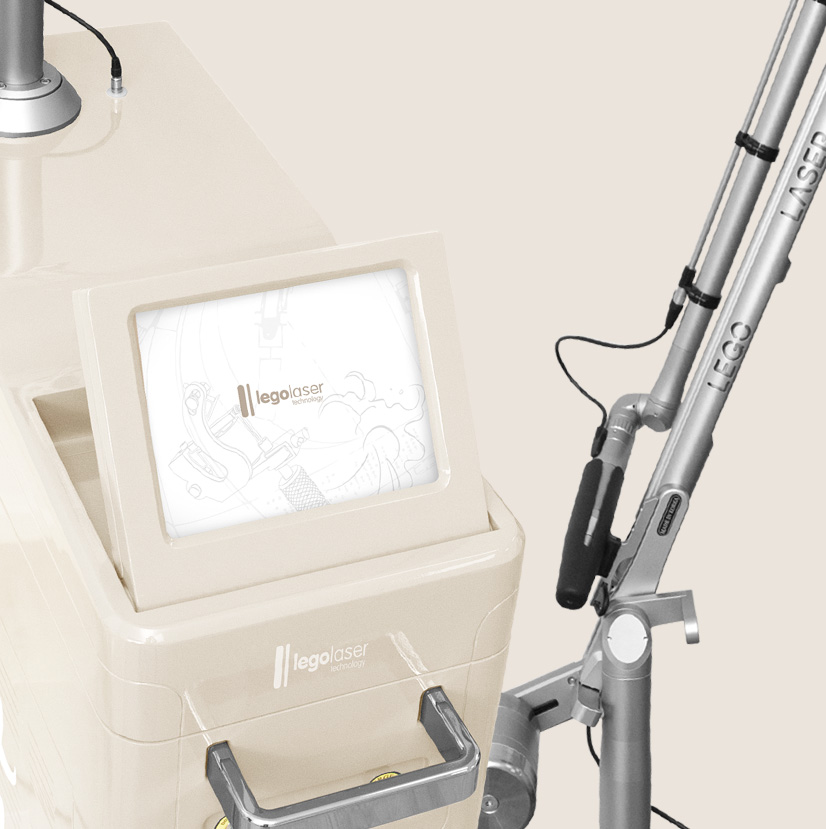

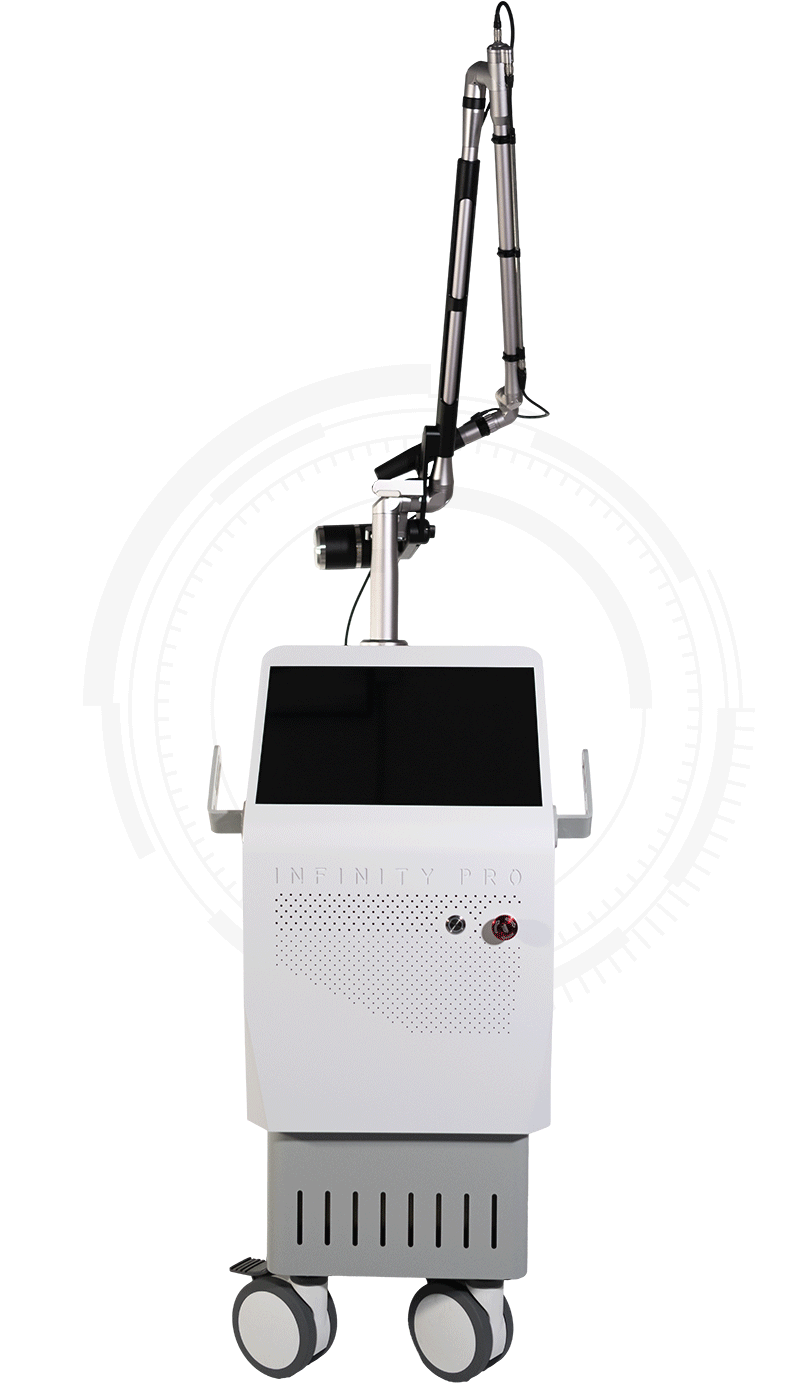

Q-Switched infinity pro

ND YAG 532 nm -1064nm


Superior Quality ND Yag Laser the favourite laser
for the most demanding professionals.

ND YAG LASER

Endless power and durability

Q-Switched Nd: Yag Infinity Pro dual wavelength (1064 nm and 532 nm) is a Q-switched laser mainly used for pigment treatments as well as tattoo removal, peeling or bleaching among others, featured by providing high energy in a very short time (6 nanoseconds).

Q-S Infinity Pro emits 1064 nm wavelength (optimal on epidermis), which thanks to the glass of titanyl potassium diphosphate (KTP) becomes to 532 nm wavelength (effective on dermis). This frequency doubler allows changing wavelength from 1064 nm (infrared) to wavelength of 532 nm (green) giving to the QS-Nd: YAG / KTP two wavelengths into one compact system.

This high energy in such a short space of time produces a photoacoustic effect with mechanical shock on tissues focused to fragment the pigment. The pigment is removed by three possible mechanisms when the Q-switched laser is applied on the skin:

  • Fragmentation of the pigment in small particles (less than 6 microns) to facilitate elimination through phagocytosis via lymphatics.
  • Chemical alteration of the pigment it less visible to the human eye.
  • Pigment can be decreased to some extent by the trans epidermal elimination.

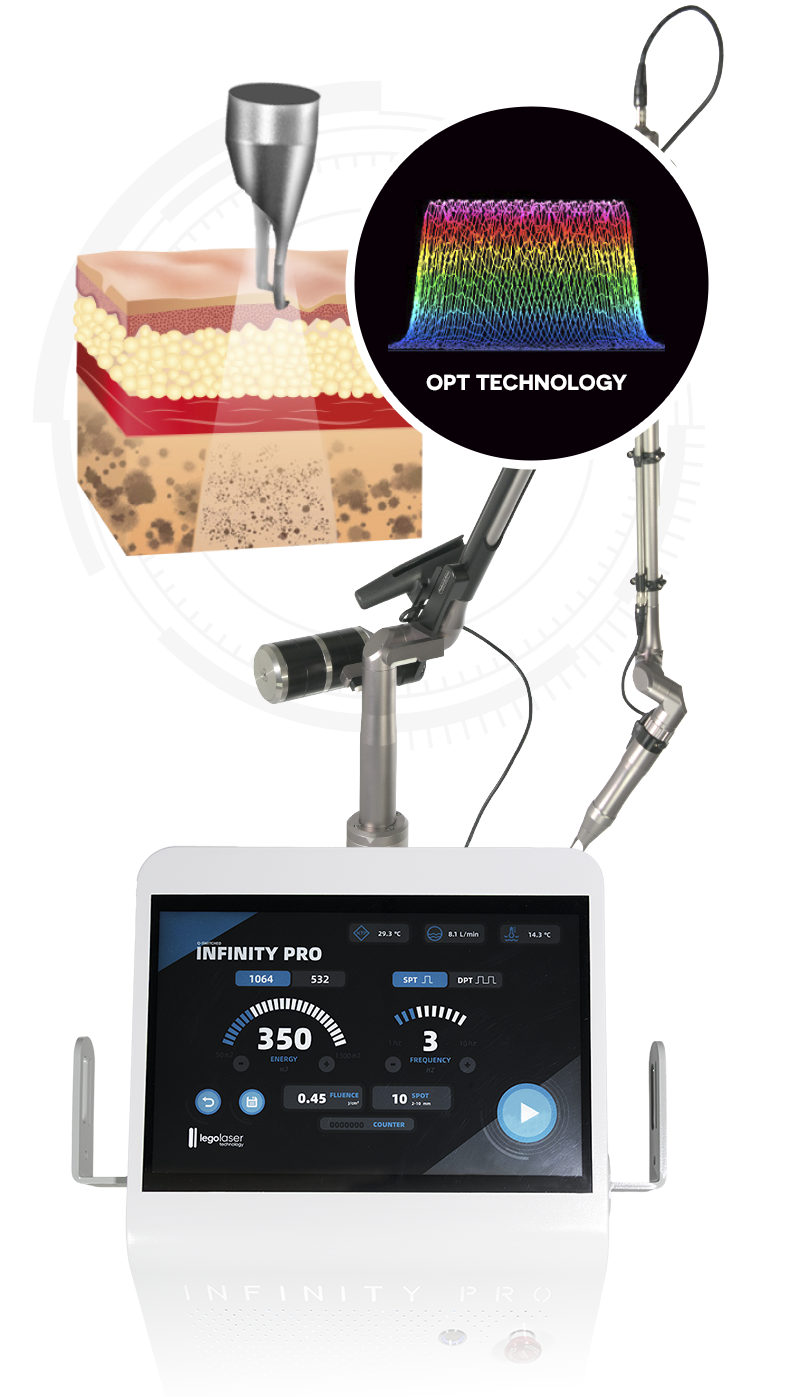

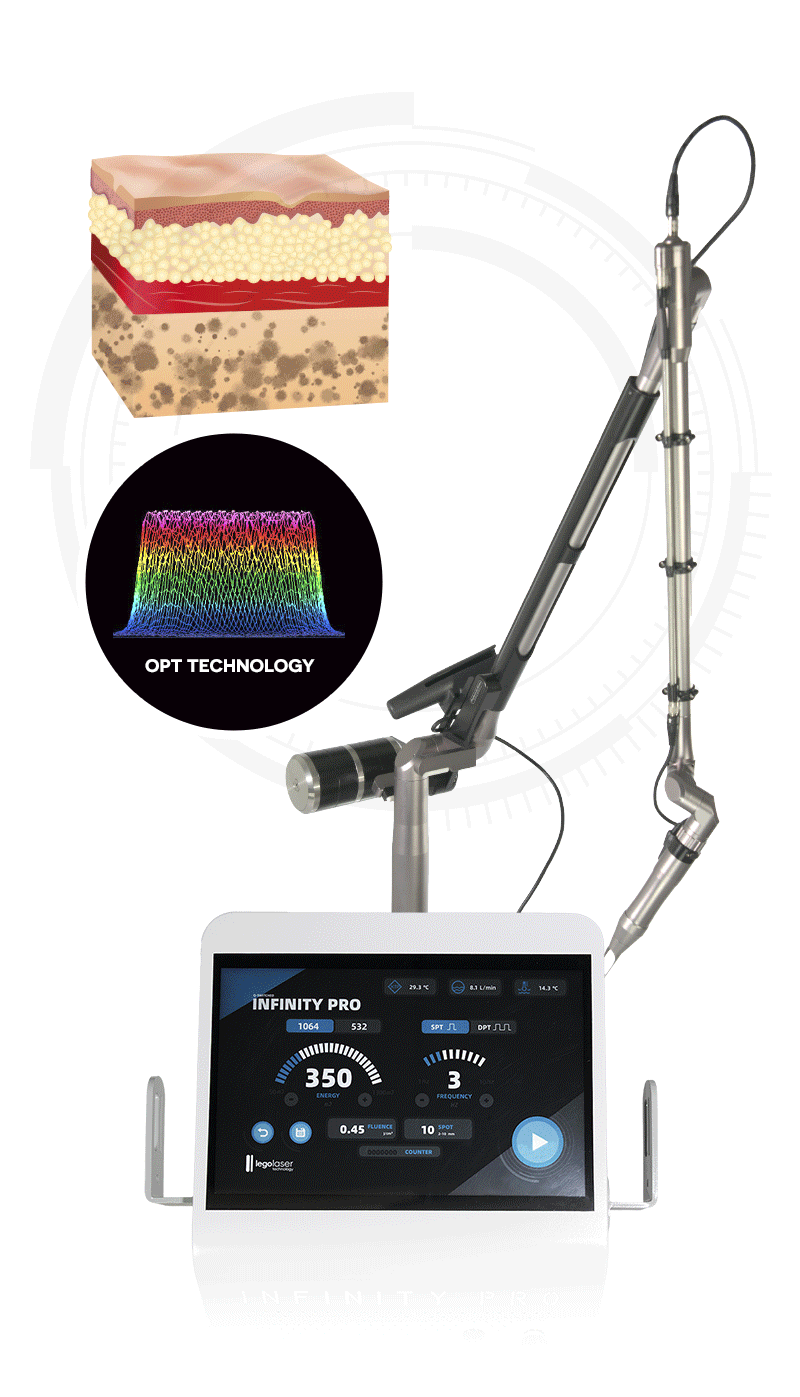

Beam Features – OPT Technology

Q-Switched Infinity Pro provides a flat-top beam with an intensity profile, offering a square and stable pulse in all pulses delivered energy. This flat top beam is translated into more effective treatments, markedly shortening the number of sessions. Flat top beam is in contrast to Gaussian beams, where the intensity smoothly decays from its maximum on the beam axis to zero.

The technology OPT (Optimal Pulse Technology) offers a square and stable pulse in all pulses delivered energy.



Gaussian beam mode



Perfect Top-Hat Mode



Perfect Top-Hat Mode



Main Features

Quasi long pulse

400ns-500ns pulse width @1064nm enables treatment performance without damaging surrounding tissues.

Stable power supply

Makes possible to optimise energy delivery even during long time treatments.

Laser autocalibration system

It assures highest beam quality as well as equal energy delivery in every treatment.

Automatic spot size

It ensures optimal focus on different target areas according to the treatment needs (Ø 2, 3, 4, 5, 6, 7, 8, 9, 10 mm).

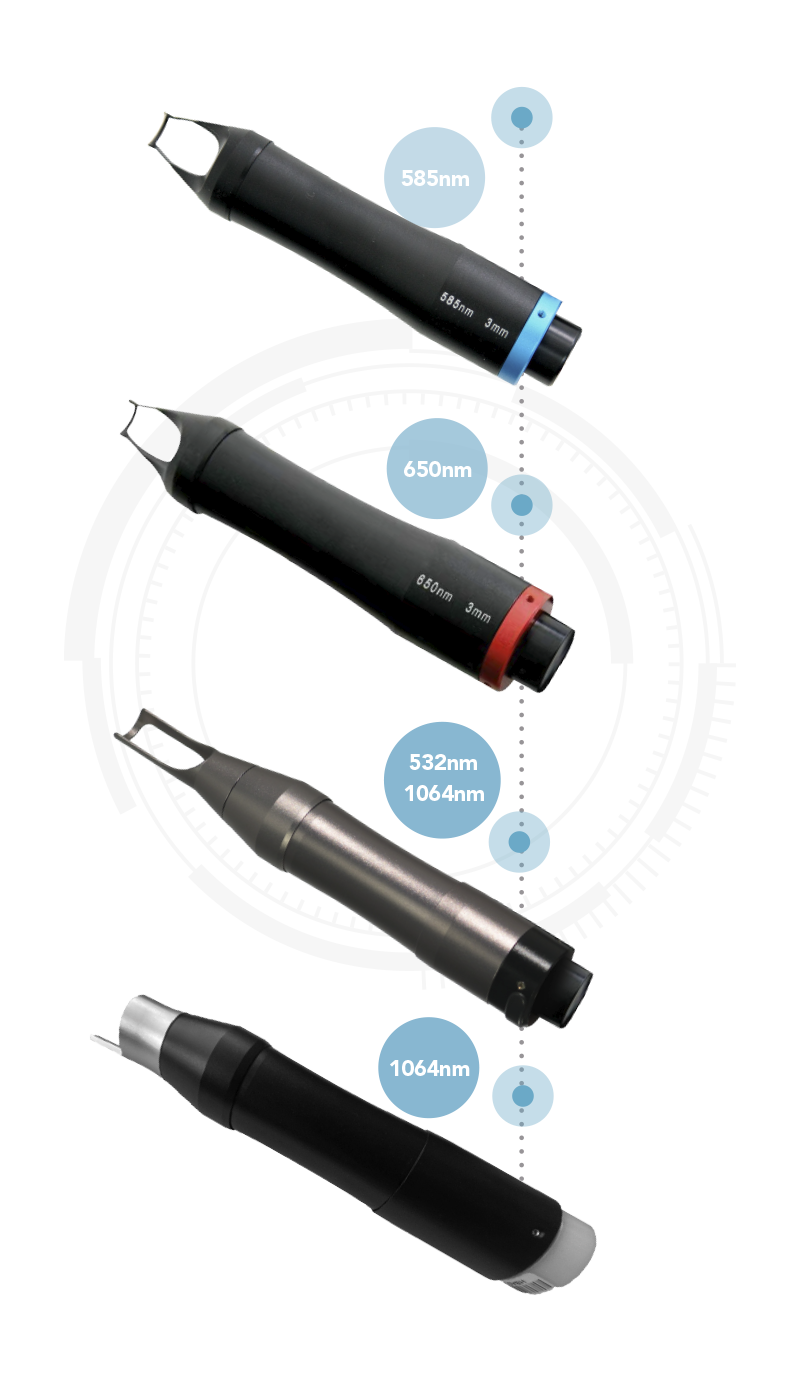

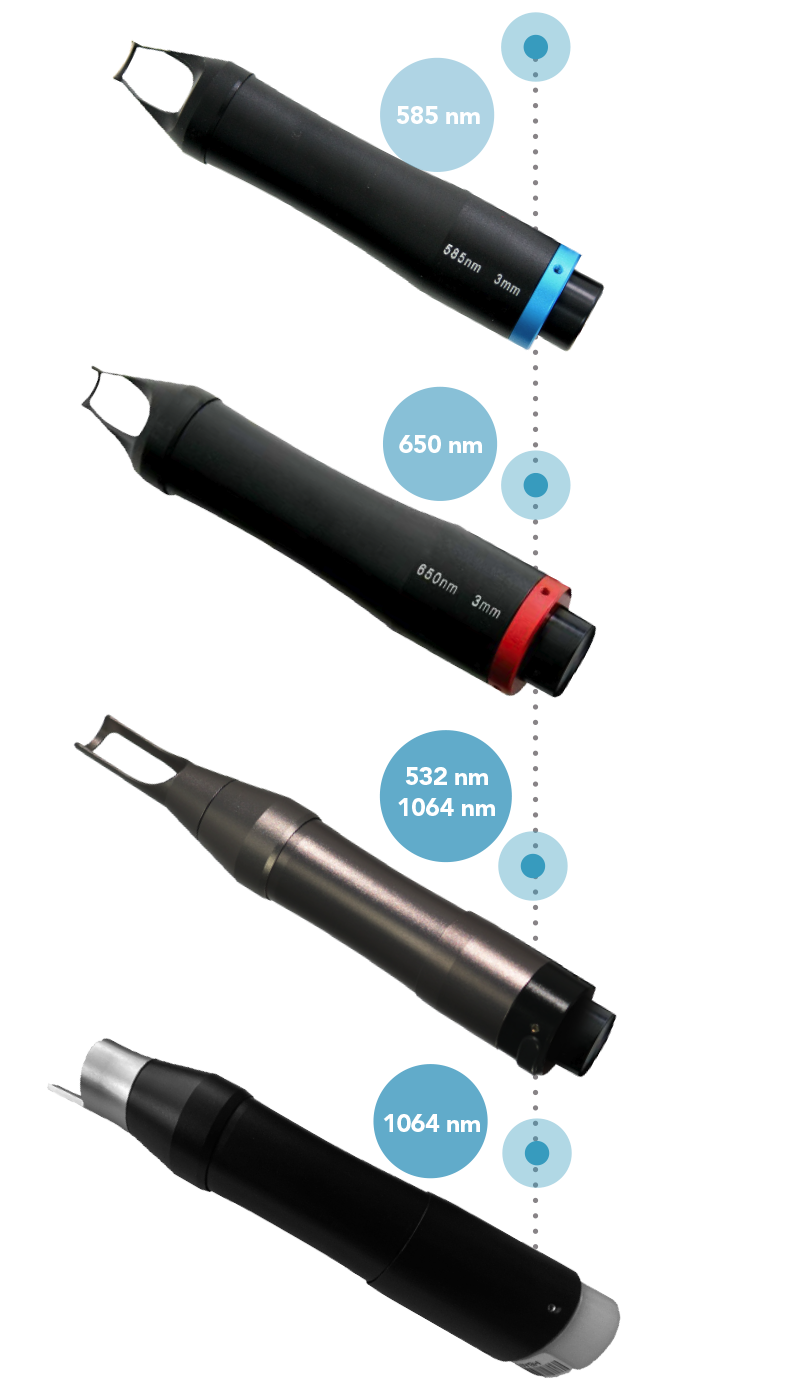

Two handle spots

1064 nm spot for rejuvenation treatments, and dual 532nm – 1064nm spot for rest of treatments.

Flat top beam

It translates into more effective treatments, markedly shortening the number of sessions.

Applications

1

Pigmented lesions, lentigos, melasma, brown spots, nevus ( Becker, Ota, Ito…)

2

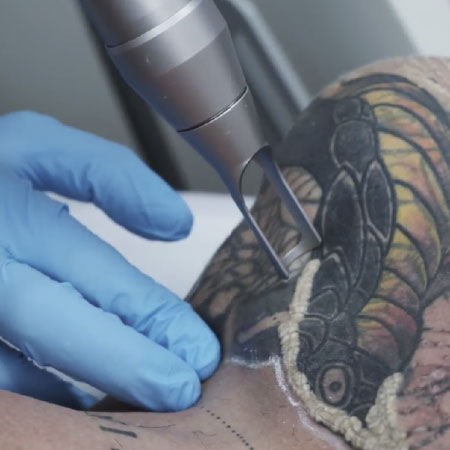

Tattoo removal, dark and light colours.

3

Carbon peeling, rejuvenation, pore sealing, tightening…

4

Acne, Onychomycosis, bleaching…

1/2 sessions

5/6 sessions

1 session

Technical sheet

Laser type – Nd Yag Q-Switched
Wavelength / Spot – 1064nm – 532nm
Spot automatically adjustable – 1064nm – 532nm + KTP
Laser Lamp – 20.000.000 Shots
Articulated Arm – 7 mirrors with multiapplication
Equipment power – 3.500 w
Screen size – LCD 15″ Color
Software – English and Others
Software Memory – 25 parameters
Protection System – Auto-Reset
Spot Size – 1064 nm – 532 nm (Ø 2, 3, 4, 5, 6, 7, 8, 9, 10) mm
Guide light – 635nm, 5mW
Pulse width (Single Pulse) – 6-8ns (Ultra short Pulse)
Pulse width (Dual Pulse) – 8-500ns (Quasy Long Pulse)
Laser Energy – 100 to 2600 mj
Shot frequency – 1 – 10 Hz
Cooling system – 7 Liters Water (Superior quality) + Air
Noise Level – 50 db
Power voltage – 220 V / 110 V
Equipment size / weight – 100 cm x 40 cm x 100 cm / 80 kg
Export pack size / weight – 120cm x 60 cm x 120 cm / 110 kg
